ET Front™

ET Front™

ULTRA LIGHT FRONT RUNNER

Complete line of front tires with applications for cars, dragsters, and land speed racers. Compliments our ET Drag® drive tires for a complete race tire package.

  • Ultra-Lightweight Design Reduces Rolling Resistance
  • Acceptable For High Speed Use
  • Tubeless Construction
  • Available in Many Popular Sizes
  • Material #90000000821 Not Acceptable for Land Speed Record Use.

Sizes

15 INCH

TIRE SIZE MEAS RIM
APPROVED RIMS
O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. APX. WT. LBS. MATL #. PART #
22.5/4.5-15 ( 4.0 ) 3.5-5.0 22.5 5.1 4.1 71 7 90000000818 3005 Buy
24.0/4.5-15 ( 4.0 ) 3.5-5.0 24.2 5.8 4.3 76 11 90000001310 30061 Buy
25.0/4.5-15 ( 4.0 ) 3.5-4.0 25 6.5 4.5 78 11 90000000815 3001 Buy
26.0/4.0-15 ( 3.5 ) 3.5-4.0 26.1 6.2 4.5 82 12 90000026533 30071 Buy
27.5/4.0-15 ( 3.5 ) 3.5-4.0 27.3 6.8 4.6 86 12 90000026534 30091 Buy
28.0/4.5-15 ( 4.0 ) 3.5-4.5 28 7.2 5.1 88 13 90000000816 3002 Buy
29.0/4.5-15 ( 4.0 ) 3.5-5.0 28.7 7.3 4.5 90 12 90000000821 3008 Buy

17 INCH

TIRE SIZE MEAS RIM
APPROVED RIMS
O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. APX. WT. LBS. MATL #. PART #
22.0/2.5-17 ( 2.5 ) 2.5-2.5 22 2.7 1.5 67 4 90000000817 3004 Buy
26.0/4.0-17 ( 3.5 ) 3.5-4.0 26.5 5.4 4.5 83 12 90000026535 30073 Buy
27.5/4.0-17 ( 3.5 ) 3.5-4.0 27.8 5.8 4.5 87 12 90000026536 30093 Buy

Quality + Construction

Intro

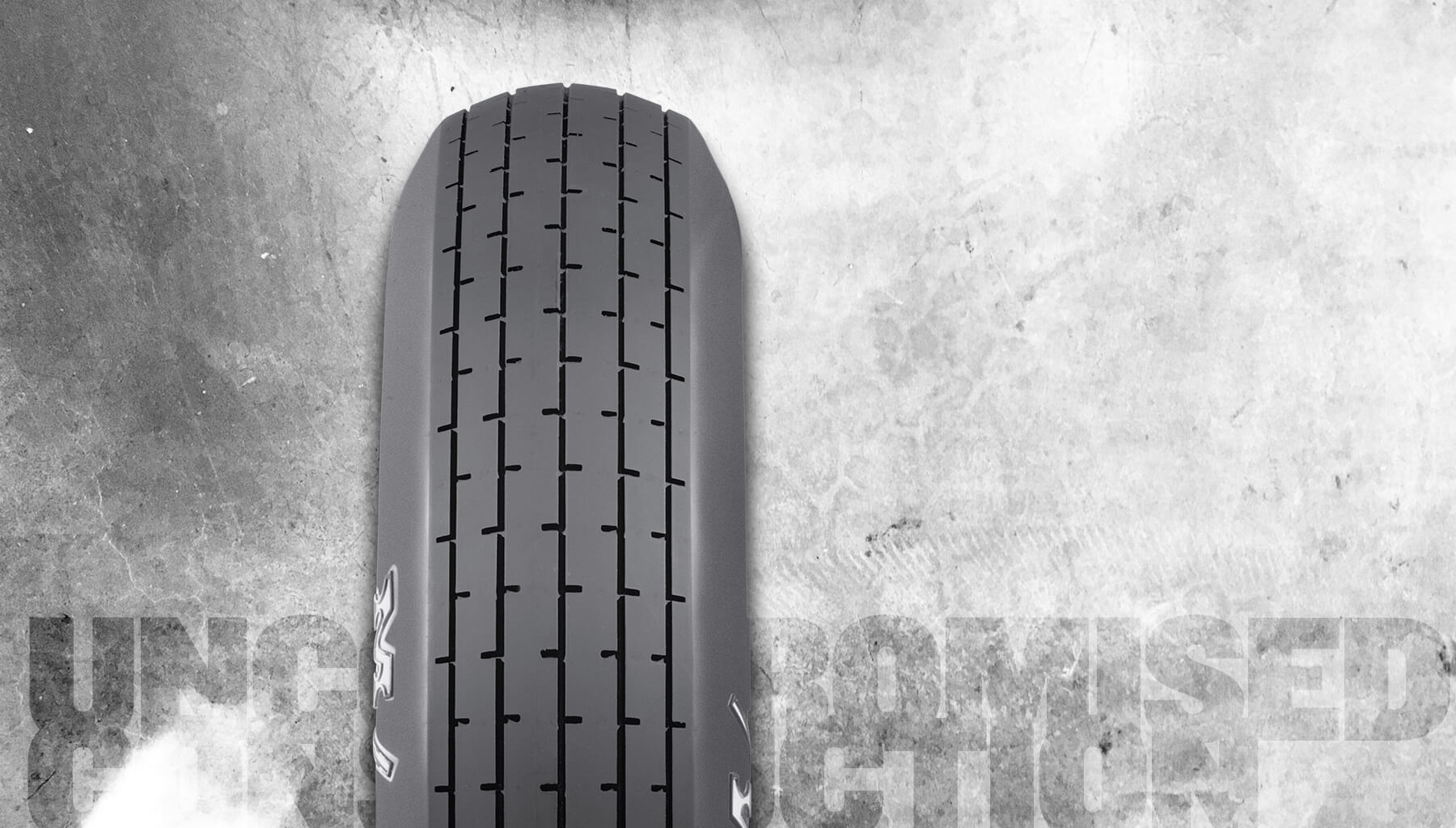

TREAD

Ultra-Lightweight
Front Race Tire

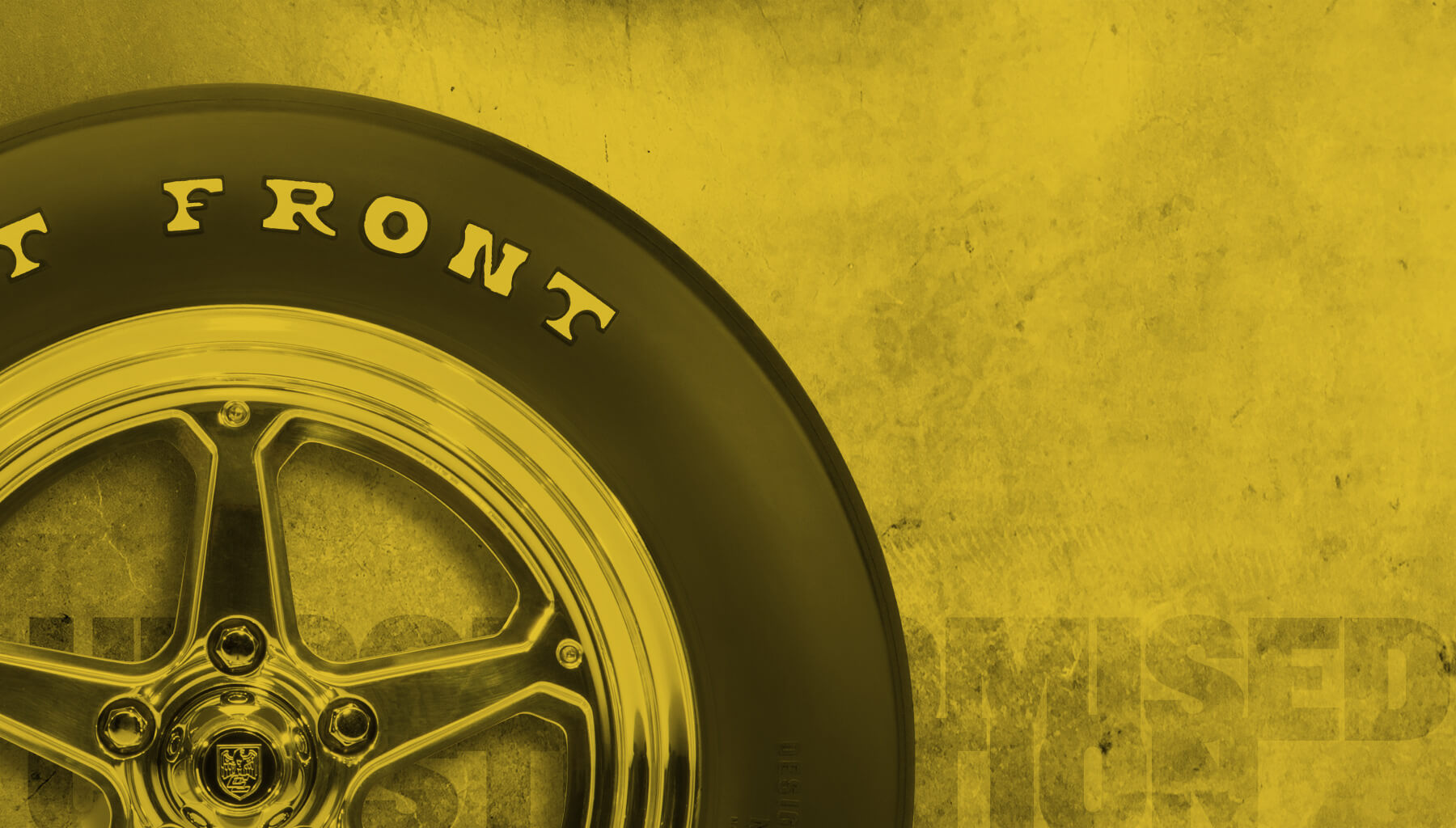

SIDEWALL

High Speed Application
Tubeless Construction

*Stiff Sidewall
† High Growth Tire

ACCEPTABLE PRACTICE (EXCEPT ET STREET R, ET STREET R BIAS AND ET STREET S/S) FOR RIM WIDTH IS TREAD WIDTH PLUS OR MINUS ONE INCH.

WARNING: DO NOT USE ON DYNO.

IMPORTANT: ALL BIAS DRAG DRIVE TIRES MUST BE MATCHED TO BE WITHIN 1/2 INCH ROLL OUT.

NEVER USE RIM SCREWS ON RADIAL DRAG TIRES!

MICKEY THOMPSON COMPOUND SELECTION CHART

MEDIUM SOFT
M7 X5 M5 L5 R2 R1 X8 L8 X7 L7 L4 L2
To identify the compound of your current M/T® ET Drag tires look at the serial number on the sidewall of the tire.
EXAMPLE: CY1J M5 FJ2616

CONSTRUCTION

ST ...... Suggested for manual transmissions (medium compound)
W ...... Extra tread width (please note actual tread and section width on spec sheet)
S ...... Stiff sidewall construction aids in quicker reaction time due to less tire distortion. Also good in high horsepower applications and for heavy cars (Over 3,000 lbs)
C ...... Sport Compact
R ...... Radial Construction

COMPOUNDS

B2 ......For Motorcycles
L4 ...... FWD Vehicles
L7 ...... For Motorcycles
L8 ...... Good Compound for General Use
L2 ...... For Jr. Dragsters
M5 ...... Good Compound for General Use
M7 ...... Good Compound for High Horsepower Applications With Clutch
M8 ...... Aggressive Compound for Index Racing, Works Well in All Ambient and Track Conditions
X5 ...... Cooler running version of M5
X7 ...... Cooler running version of L7
X8 ...... Cooler running version of L8
R1 ...... Special Compound for ET Drag Radial
R2 ...... Special Compound for ET Street S/S, ET Street R & ET Street Radial Pro
