Pro Bracket Radial

FASTER THAN BIAS COUNTERPARTS

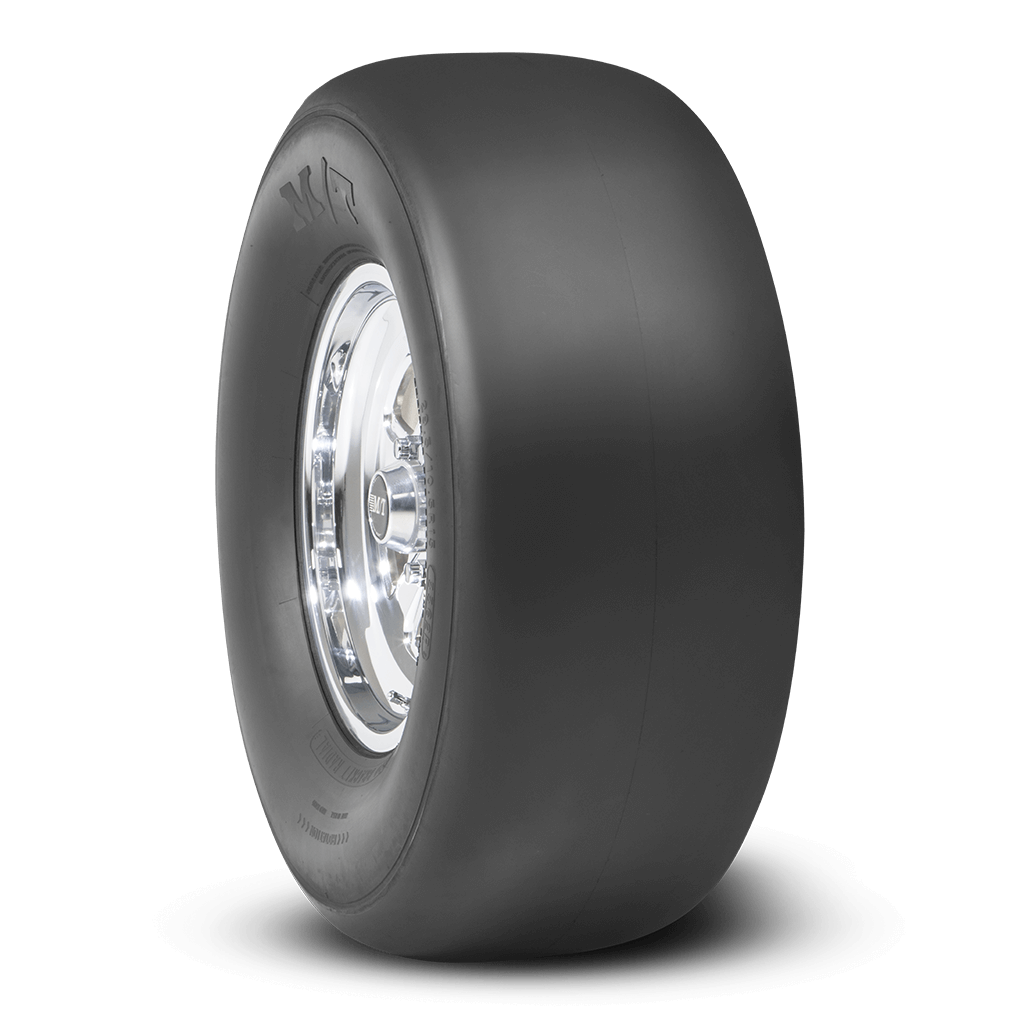

Pro Bracket Radial from Mickey Thompson is a fast, consistent, reliable, affordable radial for the weekend Sportsman racer.

  • Low rolling resistance allowing them to be quicker and faster than the bias ply counterparts
  • The rollouts are always the same – no need to “match” tires
  • Consistent performance designed for bracket racing
  • No tubes required
  • Sizes
  • Quality + Construction

Sizes

15 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
28.0/10.5R15 10 28 12.2 10.2 88.1 X5 Tubeless 29 250798 3355R 315058006 90000024498 Buy
28.0/9.0R15 8 28 10.7 9.0 87.8 X5 Tubeless 26 250658 3354R 315030006 90000024497 Buy
29.5/10.5R15 10 30 12.5 10.2 94.2 X5 Tubeless 31 250797 3362R 315037006 90000024499 Buy
31.0/13.5R15 14 31.9 16.3 13.5 100 X5 TUBELESS 41 250795 3373R 315019006 90000026342 Buy
32.0/14.0R15 14 32.6 16.5 14.1 102 X5 TUBELESS 42 250796 3374R 315035006 90000026341 Buy

17 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
29.5/10.5R17 10 29.5 12.7 10.6 92.8 X5 TUBELESS 35 250802 3347R 315073006 90000059991 Buy

20 INCH

TIRE SIZE MEAS RIM WIDTH O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. CIRC. COMPOUND Suggested Tube APX. WT. LBS. MATL #. PART # PRODUCT CODE CROSS REF#
29.0/11.5R20 10 28.7 12.0 10.4 90.2 X5 TUBELESS 34 250800 3340R 315074006 90000059993 Buy

Quality + Construction





TREAD

Consistent Performance
Low Resistance

SIDEWALL

Consistent Rollouts
Tubeless

*Stiff Sidewall
† High Growth Tire

ACCEPTABLE PRACTICE (EXCEPT ET STREET R, ET STREET R BIAS AND ET STREET S/S) FOR RIM WIDTH IS TREAD WIDTH PLUS OR MINUS ONE INCH.

WARNING: DO NOT USE ON DYNO.

IMPORTANT: ALL BIAS DRAG DRIVE TIRES MUST BE MATCHED TO BE WITHIN 1/2 INCH ROLL OUT.

NEVER USE RIM SCREWS ON RADIAL DRAG TIRES!

MICKEY THOMPSON COMPOUND SELECTION CHART

CONSTRUCTION

ST ...... Suggested for manual transmissions (medium compound)
W ...... Extra tread width (please note actual tread and section width on spec sheet)
S ...... Stiff sidewall construction aids in quicker reaction time due to less tire distortion. Also good in high horsepower applications and for heavy cars (Over 3,000 lbs)
R ...... Radial Construction

COMPOUNDS

L2 ...... For Jr. Dragsters
L4 ...... For Dragsters, lightweight vehicles and vehicles without rear suspension
L6 ...... Good for High Horsepower - Boosted Applications
L7 ...... For Motorcycles
L8 ...... Good Compound for General Use
M5 ...... Good Compound for General Use
R1 ...... Special Compound for ET Drag Radial
R2 ...... Special Compound for ET Street S/S, ET Street R & ET Street Radial Pro
X5 ...... Cooler running version of M5
X8 ...... Cooler running version of L8
`

MEDIUM SOFT
X5 M5 L6 R2 R1 X8 L8 L7 L4 L2
To identify the compound of your current M/T® ET Drag tires look at the serial number on the sidewall of the tire.
EXAMPLE: CY1J M5 FJ2620
`
