Classic III

M/T CLASSIC SERIES

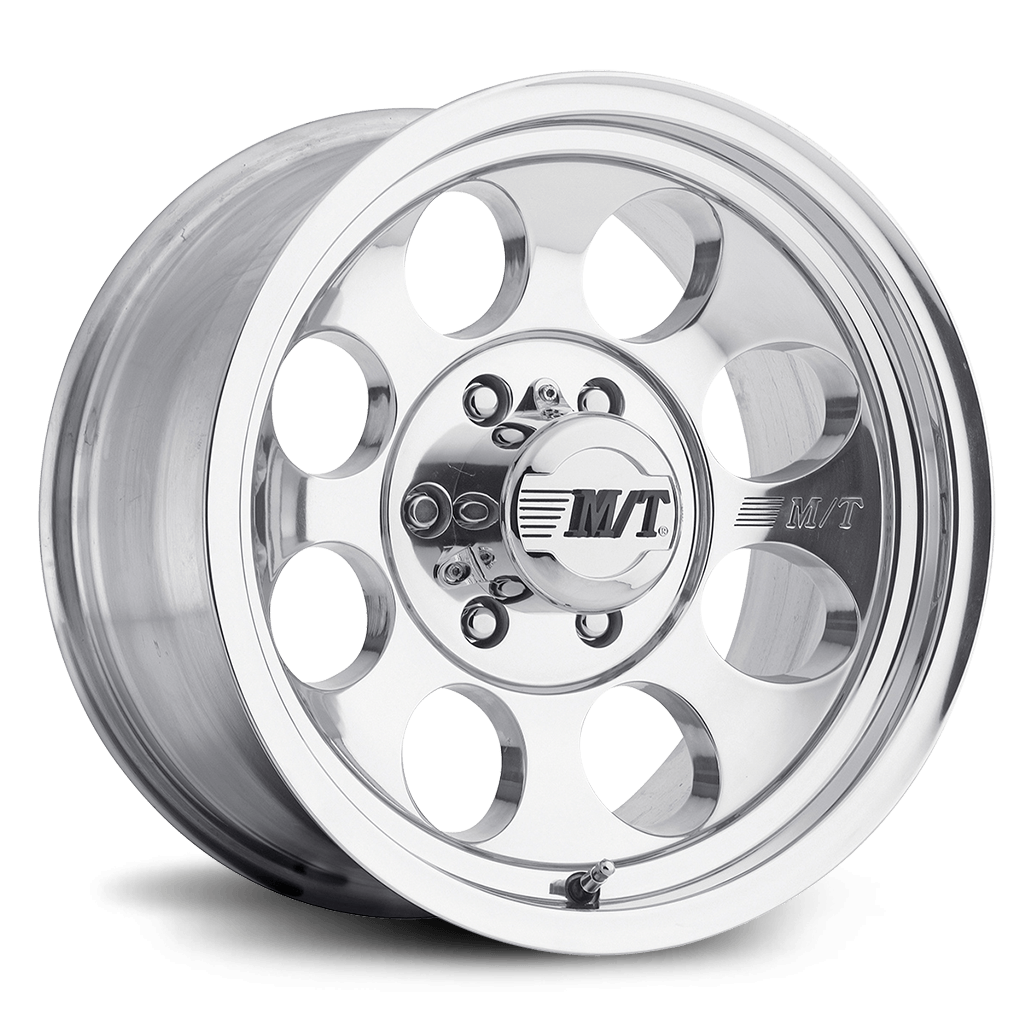

The Mickey Thompson Classic III wheel features the classic 8-Hole design in a highly polished finish that includes matching polished hand holes. The embossed M/T logo is assurance of quality, strength and dependability. The Classic III is available in sizes 15x8 through 17x9.

  • Redesigned smooth outer lip for clean appearance
  • Unique sizing includes 15x12 and 16x12
  • Non-corrosive screw on center cap
  • Lifetime Limited Warranty against structural defects

We do not offer center caps for 1986 and earlier Jeeps
Wheels are not compatible with 1986 and earlier CJ models

classic series
  • Sizes

Sizes

15 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
15X10
5X4.5 3.6 -45 81.48 1,900 19 250367 250329 2350421 226100040 90000001761 Buy
15X10
5X5.5 3.6 -45 106.50 2,500 19 250368 250330 2350402 226100041 90000001762 Buy
15X10
6X5.5 3.6 -45 106.10 2,500 19 250369 250331 2350412 226100042 90000001763 Buy
15X12
5X5.5 3.6 -73 106.50 2,500 21 250368 250332 2352402 226100043 90000001764 Buy
15X12
6X5.5 3.6 -73 106.10 2,500 21 250369 250333 2352412 226100044 90000001767 Buy
15X8
5X4.5 3.6 -22 81.48 1,900 17 250367 250325 2358421 226100036 90000001718 Buy
15X8
5X5.5 3.6 -22 106.50 1,900 16 250368 250326 2358402 226100037 90000001719 Buy
15X8
6X5.5 3.6 -22 106.10 1,900 16 250369 250328 2358412 226100039 90000001760 Buy

16 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
16X10
6X5.5 4.5 -25 106.10 2,500 23 250369 250342 2360412 226100053 90000001776 Buy
16X10
8X170 4.5 -25 125.20 3,500 24 250372 250344 2360170 226100055 90000001778 Buy
16X10
8X6.5 4.5 -25 125.20 3,250 24 250370 250343 2360482 226100054 90000001777 Buy
16X12
8X170 4.5 -50 125.20 3,500 25 250372 250346 2362170 226100057 90000001780 Buy
16X12
8X6.5 4.5 -50 125.20 3,250 25 250370 250345 2362482 226100056 90000001779 Buy
16X8
5X4.5 4.5 0 81.48 1,900 21 250367 250336 2368421 226100047 90000001770 Buy
16X8
5X5.5 4.5 0 106.50 2,500 20 250368 250337 2368402 226100048 90000001771 Buy
16X8
6X5.5 4.5 0 106.10 2,500 20 250369 250338 2368412 226100049 90000001772 Buy
16X8
6X5.5 3.6 -22 106.10 2,500 22 250369 250339 2368413 226100050 90000001773 Buy
16X8
8X170 4.0 -12 125.20 3,500 23 250372 250341 2368170 226100052 90000001775 Buy
16X8
8X6.5 4.0 -12 125.20 3,250 23 250370 250340 2368482 226100051 90000001774 Buy

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
17X9
5X5 4.5 -12 78.08 2,500 27 250367 250347 2379431 226100058 90000001781 Buy
17X9
5X5.5 4.5 -12 106.50 2,500 24 250368 250348 2379402 226100059 90000001782 Buy
17X9
6X5.5 4.5 -12 106.10 2,500 24 250369 250290 2379412 226100061 90000001784 Buy
17X9
8X170 5.0 0 125.20 3,500 23 250372 250432 2379170 226100063 90000001786 Buy
17X9
8X6.5 5.0 0 125.20 3,250 24 250370 250431 2379482 226100062 90000001785 Buy

IMPORTANT WHEEL FITMENT NOTES
All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

Not suitable for use on 2022 to present Toyota Tundra models due to insufficient fastener thread engagement

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
