Sidebiter® Lock

M/T CLASSIC SERIES

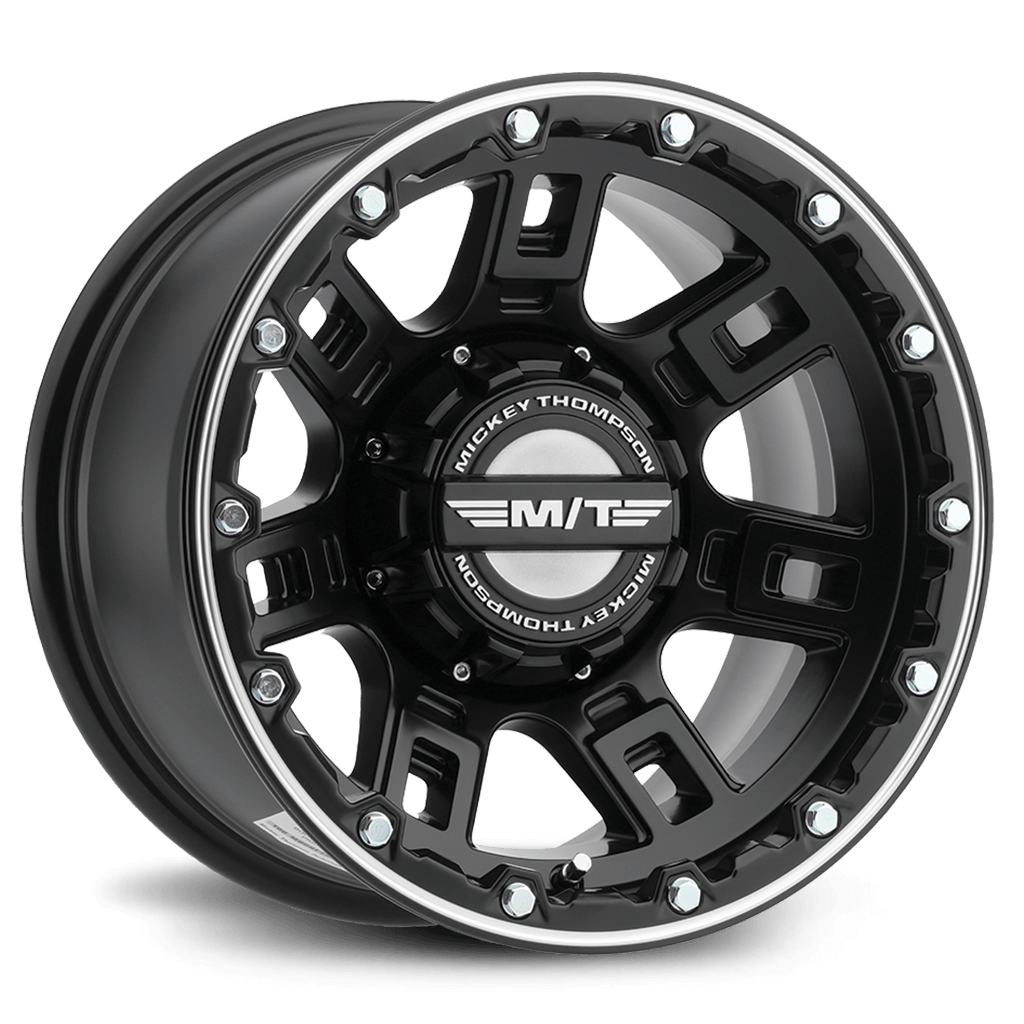

The SideBiter Lock is styled after one of the best known innovations in off-road history—Mickey Thompson’s revolutionary “tread-on-the-sidewall” tire design called SideBiters®, The SideBiter Lock features a satin black finish with machined accents. The Sidebiter Lock is available in sizes 15x8 through 20x12.

  • Non-corrosive black plastic screw on center cap
  • High load rating for strength and durability
  • Lifetime limited warranty against structural defects
  • 1-year finish warranty


Sizes

15 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
15X8
5X4.50 3.6 -22 78.31 2,000 21 90000031905 90000031060 3358421 Buy
15X8
5X5.50 3.6 -22 108.00 2,000 21 90000031905 90000031061 3358402 Buy
15X8
6X5.50 3.6 -22 108.00 2,000 20 90000031905 90000031062 3358412 Buy
15X10
5X4.50 3.6 -45 78.31 2,000 25 90000031905 90000031063 3350421 Buy
15X10
5X5.50 3.6 -45 108.00 2,600 26 90000031905 90000031064 3350402 Buy
15X10
6X5.50 3.6 -45 108.00 2,600 25 90000031905 90000031065 3350412 Buy

16 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
16X8
6X5.50 4.5 0 108.00 2,600 23 90000031905 90000031066 3368412 Buy
16X8
8X6.50 4.5 0 125.20 3,640 25 90000031903 90000031067 3368482 Buy

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
17X9
5X4.5/5X5.00 4.5 -12 81.51 2,600 29 90000031905 90000031068 3379431 Buy
17X9
6X135/6X5.5 4.5 -12 108.00 2,600 29 90000031905 90000031069 3379462 Buy
17X9
8X6.50 5.0 0 125.20 3,640 29 90000031903 90000031070 3379482 Buy

20 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART #
20X9
5X150 5.8 18 110.31 2,600 38 90000031906 90000031071 3320150 Buy
20X9
6X135/6X5.5 5.8 18 108.00 2,600 38 90000031905 90000031072 3329462 Buy
20X9
8X170 5.0 0 125.20 3,640 37 90000031907 90000031075 3329170 Buy
20X9
8X6.50 5.0 0 125.20 3,640 37 90000031907 90000031074 3329482 Buy
20X12
8X170 4.5 -50 125.20 3,640 43 90000031907 90000031077 3322170 Buy
20X12
8X180 4.8 -44 124.31 3,640 43 90000031907 90000031078 3322180 Buy
20X12
8X6.50 4.5 -50 125.20 3,640 43 90000031907 90000031076 3322482 Buy

IMPORTANT WHEEL FITMENT NOTES

All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
