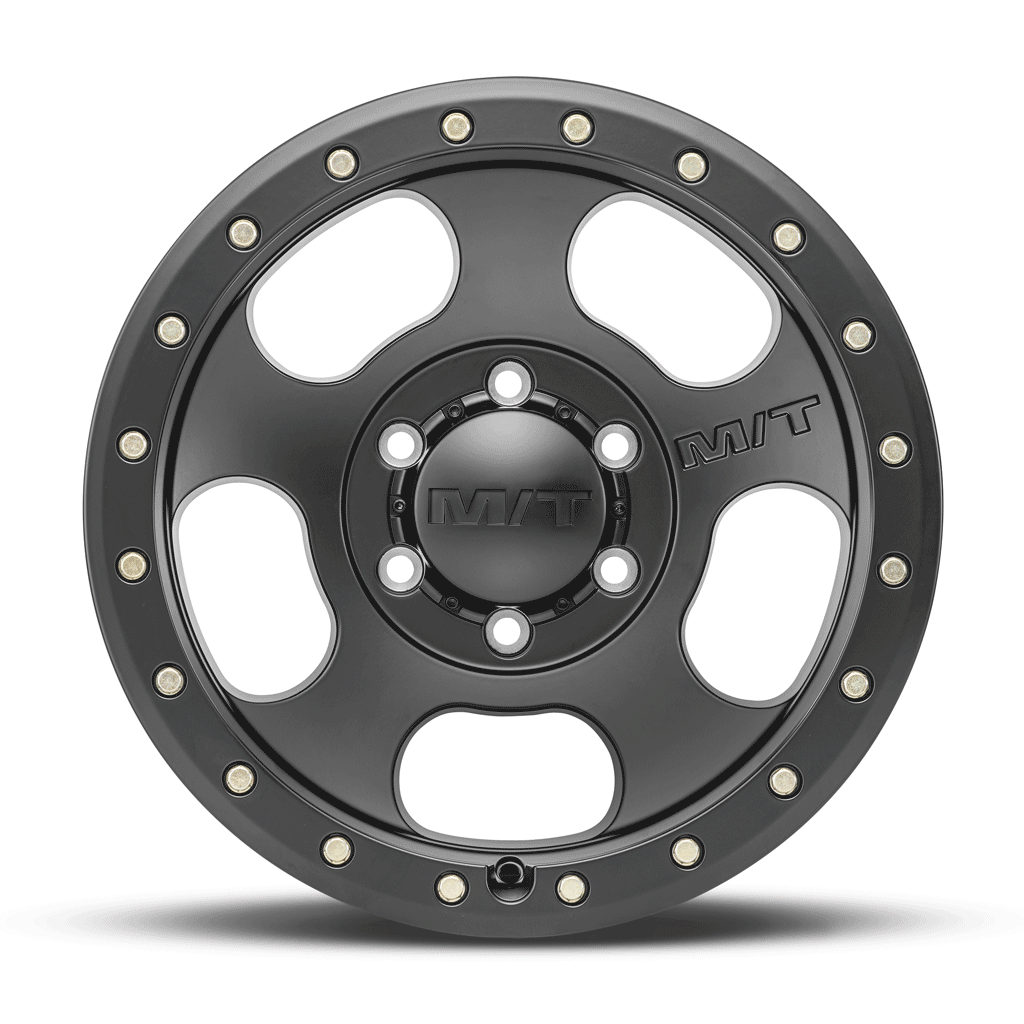

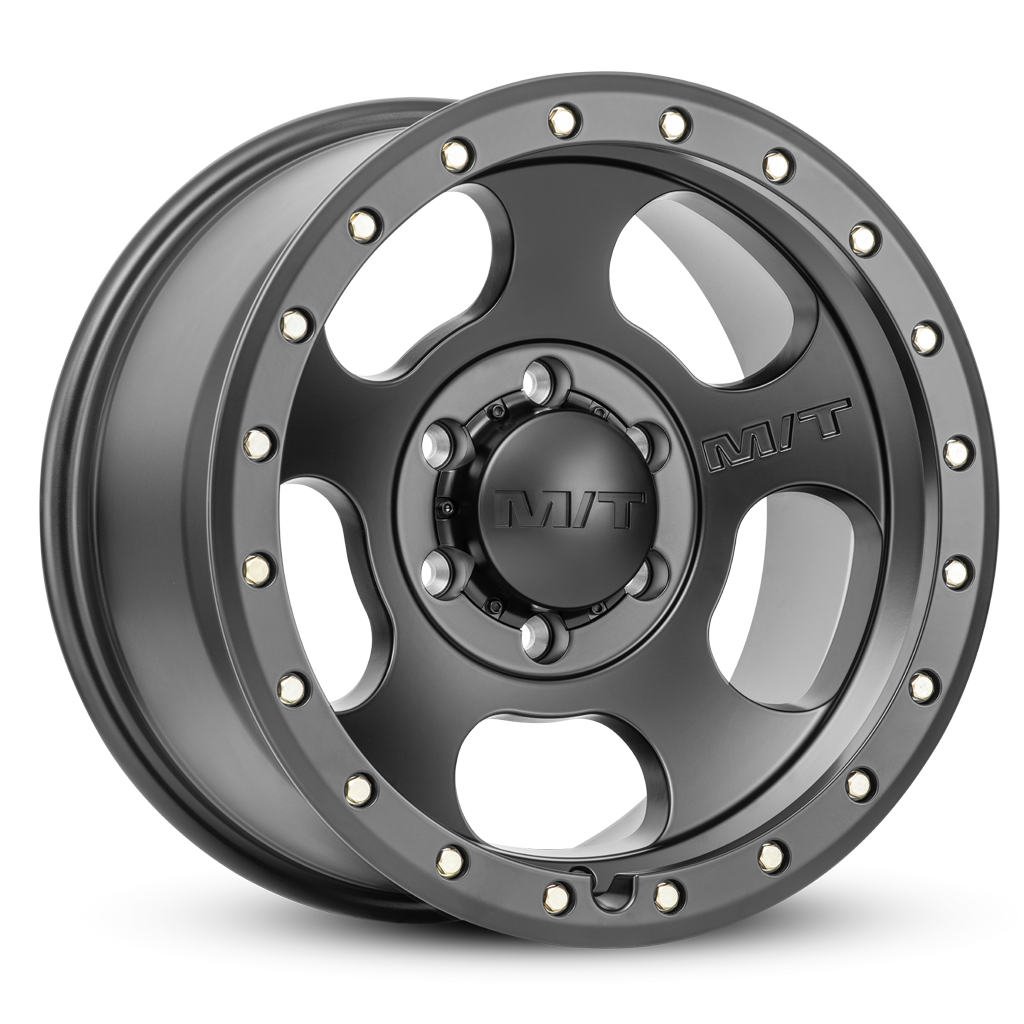

MT Canyon Pro Satin Black

MT Pro Series

The MT Canyon Pro is a truck and SUV wheel blending modern race-inspired looks with street-ready style. It features a classic 5-hole slot design and a simulated beadlock. Available in three finishes: Polished, Satin Black, and Satin Bronze.

  • Simulated beadlock style with genuine 5/8" Zinc bolts delivers a bold, aggressive look
  • Modern low profile cap design
  • Fitments for modern trucks, Jeeps, and SUVs
  • 17", 18", and 20" diameter options


  • Sizes

Sizes

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
17X9
 5X5 4.5 -12 71.60 2,500 27 274693 274522 274522 226100568 226100568 Buy
17X9
 5X5.5 4.5 -12 108.10 2,500 27 274694 274523 274523 226100569 226100569 Buy
17X9
 6X120 4.8 -5 67.01 2,500 27 274695 274524 274524 226100570 226100570 Buy
17X9
 6X135 4.5 -12 87.10 2,500 27 274696 274526 274526 226100572 226100572 Buy
17X9
 6X5.5 5.0 0 108.10 2,500 27 274697 274527 274527 226100573 226100573 Buy
17X9
 6X5.5 4.5 -12 108.10 2,500 27 274697 274528 274528 226100574 226100574 Buy
17X9
 8X170 5.0 0 125.20 3,500 28 274698 274530 274530 226100576 226100576 Buy
17X9
 8X6.5 5.0 0 125.20 3,500 28 274698 274529 274529 226100575 226100575 Buy

18 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
18X9
 5X150 5.0 0 110.11 2,500 29 274694 274563 274563 226100579 226100579 Buy
18X9
 5X5 4.5 -12 71.60 2,500 30 274693 274561 274561 226100577 226100577 Buy
18X9
 5X5.5 5.0 0 108.10 2,500 29 274694 274562 274562 226100578 226100578 Buy
18X9
 6X120 4.8 -5 67.01 2,500 29 274695 274564 274564 226100580 226100580 Buy
18X9
 6X135 5.0 0 87.10 2,500 29 274696 274565 274565 226100581 226100581 Buy
18X9
 6X5.5 5.0 0 108.10 2,500 29 274697 274566 274566 226100582 226100582 Buy
18X9
 8X170 5.0 0 125.20 3,750 30 274698 274568 274568 226100584 226100584 Buy
18X9
 8X180 5.0 0 125.20 3,750 30 274699 274569 274569 226100585 226100585 Buy
18X9
 8X6.5 5.0 0 125.20 3,750 30 274698 274567 274567 226100583 226100583 Buy

20 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
20X9
 5X150 5.0 0 110.11 2,500 35 274694 274572 274572 226100588 226100588 Buy
20X9
 5X5 5.0 0 71.60 2,500 35 274693 274570 274570 226100586 226100586 Buy
20X9
 5X5.5 5.0 0 108.10 2,500 35 274694 274571 274571 226100587 226100587 Buy
20X9
 6X135 5.0 0 87.10 2,500 35 274696 274573 274573 226100589 226100589 Buy
20X9
 6X5.5 5.0 0 108.10 2,500 35 274697 274574 274574 226100590 226100590 Buy
20X9
 8X170 5.0 0 125.20 3,750 37 274698 274576 274576 226100592 226100592 Buy
20X9
 8X180 5.0 0 125.20 3,750 37 274699 274577 274577 226100593 226100593 Buy
20X9
 8X6.5 5.0 0 125.20 3,750 37 274698 274575 274575 226100591 226100591 Buy

IMPORTANT WHEEL FITMENT NOTES
All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

Not suitable for use on 2022 to present Toyota Tundra models due to insufficient fastener thread engagement

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
