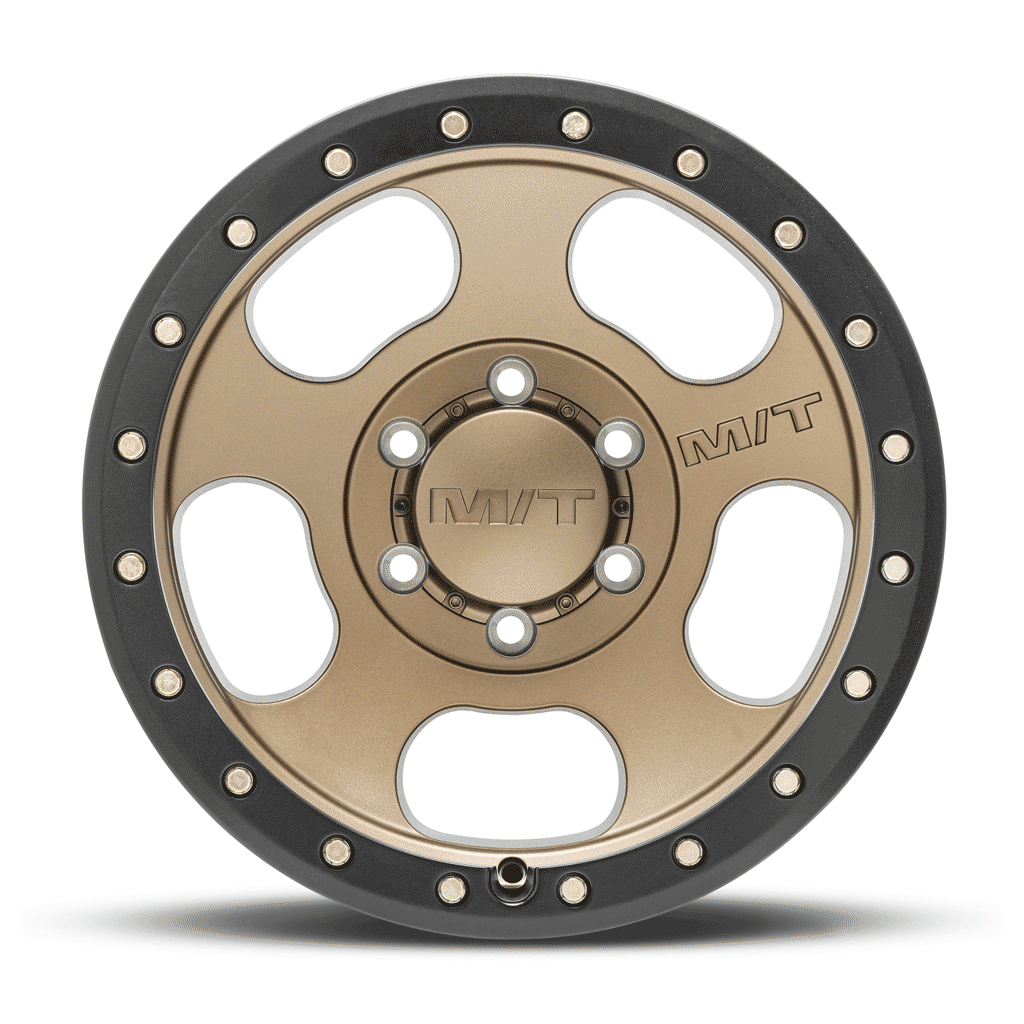

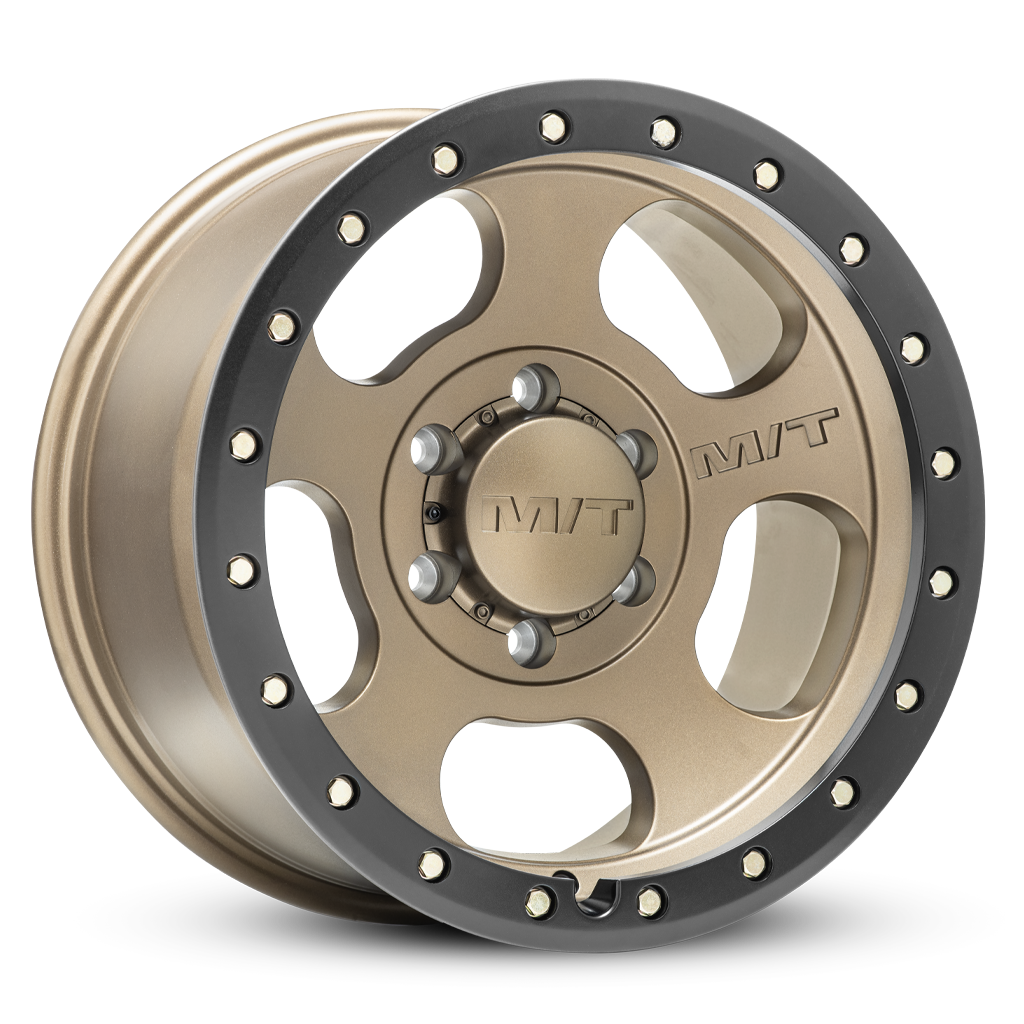

MT Canyon Pro Satin Bronze

MT Pro Series

The MT Canyon Pro is a truck and SUV wheel blending modern race-inspired looks with street-ready style. It features a classic 5-hole slot design and a simulated beadlock. Available in three finishes: Polished, Satin Black, and Satin Bronze.

  • Simulated beadlock style with genuine 5/8" Zinc bolts delivers a bold, aggressive look
  • Modern low profile cap design
  • Fitments for modern trucks, Jeeps, and SUVs
  • 17", 18", and 20" diameter options


  • Sizes

Sizes

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
17X9
 5X5 4.5 -12 71.60 2,500 27 274595 274613 274613 226100594 226100594 Buy
17X9
 5X5.5 4.5 -12 108.10 2,500 27 274596 274614 274614 226100595 226100595 Buy
17X9
 6X120 4.8 -5 67.01 2,500 27 274597 274615 274615 226100596 226100596 Buy
17X9
 6X135 4.5 -12 87.10 2,500 27 274598 274617 274617 226100598 226100598 Buy
17X9
 6X5.5 5.0 0 108.10 2,500 27 274599 274618 274618 226100599 226100599 Buy
17X9
 6X5.5 4.5 -12 108.10 2,500 27 274599 274619 274619 226100600 226100600 Buy
17X9
 8X170 5.0 0 125.20 3,500 28 274600 274671 274671 226100602 226100602 Buy
17X9
 8X6.5 5.0 0 125.20 3,500 28 274600 274620 274620 226100601 226100601 Buy

18 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
18X9
 5X150 5.0 0 110.11 2,500 29 274596 274674 274674 226100605 226100605 Buy
18X9
 5X5 4.5 -12 71.60 2,500 30 274595 274672 274672 226100603 226100603 Buy
18X9
 5X5.5 5.0 0 108.10 2,500 29 274596 274673 274673 226100604 226100604 Buy
18X9
 6X120 4.8 -5 67.01 2,500 29 274597 274675 274675 226100606 226100606 Buy
18X9
 6X135 5.0 0 87.10 2,500 29 274598 274676 274676 226100607 226100607 Buy
18X9
 6X5.5 5.0 0 108.10 2,500 29 274599 274677 274677 226100608 226100608 Buy
18X9
 8X170 5.0 0 125.20 3,750 30 274600 274679 274679 226100610 226100610 Buy
18X9
 8X180 5.0 0 125.20 3,750 30 274611 274680 274680 226100611 226100611 Buy
18X9
 8X6.5 5.0 0 125.20 3,750 30 274600 274678 274678 226100609 226100609 Buy

20 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
20X9
 5X150 5.0 0 110.11 2,500 35 274596 274683 274683 226100614 226100614 Buy
20X9
 5X5 5.0 0 71.60 2,500 35 274595 274681 274681 226100612 226100612 Buy
20X9
 5X5.5 5.0 0 108.10 2,500 35 274596 274682 274682 226100613 226100613 Buy
20X9
 6X135 5.0 0 87.10 2,500 35 274598 274684 274684 226100615 226100615 Buy
20X9
 6X5.5 5.0 0 108.10 2,500 35 274599 274685 274685 226100616 226100616 Buy
20X9
 8X170 5.0 0 125.20 3,750 37 274600 274687 274687 226100618 226100618 Buy
20X9
 8X180 5.0 0 125.20 3,750 37 274611 274688 274688 226100619 226100619 Buy
20X9
 8X6.5 5.0 0 125.20 3,750 37 274600 274686 274686 226100617 226100617 Buy

IMPORTANT WHEEL FITMENT NOTES
All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

Not suitable for use on 2022 to present Toyota Tundra models due to insufficient fastener thread engagement

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
