MT Canyon Pro Polished

MT Pro Series

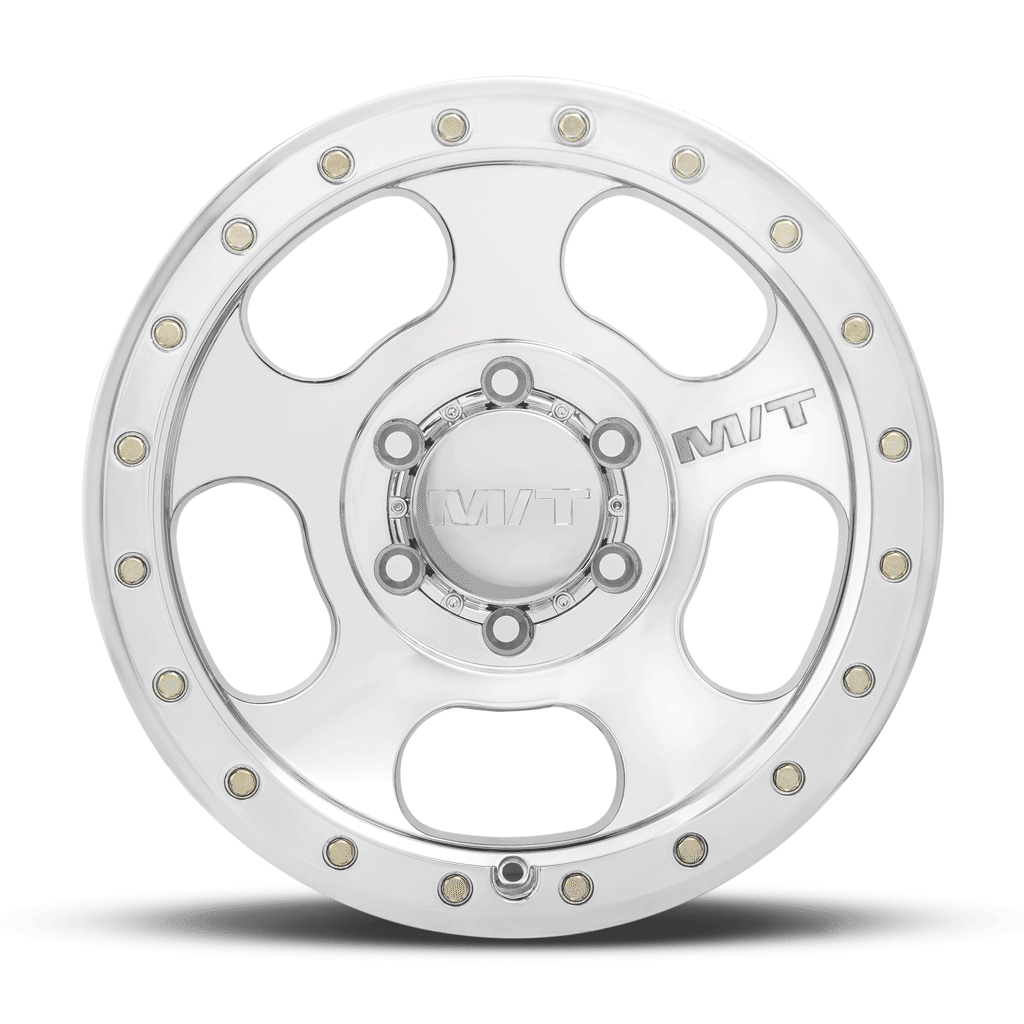

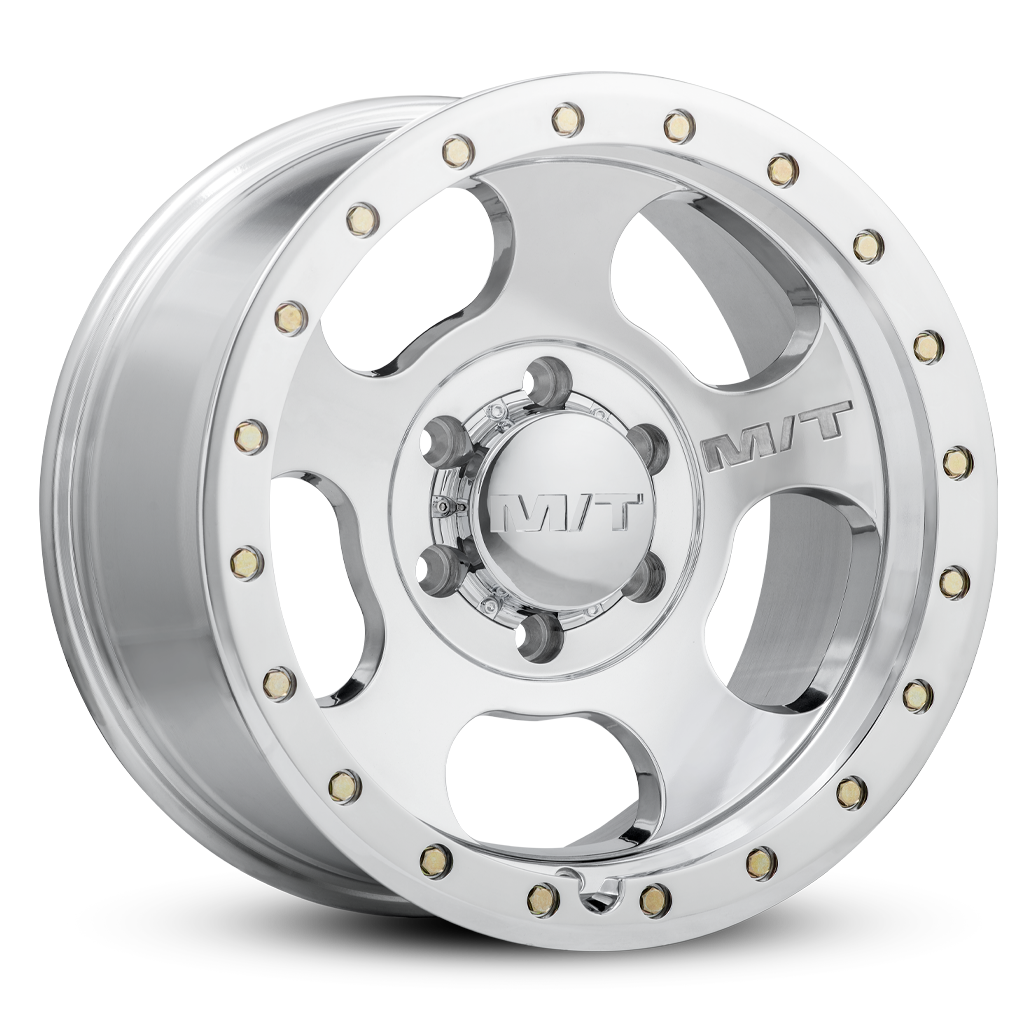

The MT Canyon Pro is a truck and SUV wheel blending modern race-inspired looks with street-ready style. It features a classic 5-hole slot design and a simulated beadlock. Available in three finishes: Polished, Satin Black, and Satin Bronze.

  • Simulated beadlock style with genuine 5/8" Zinc bolts delivers a bold, aggressive look
  • Modern low profile cap design
  • Fitments for modern trucks, Jeeps, and SUVs
  • 17", 18", and 20" diameter options


  • Sizes

Sizes

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
17X9
 5X5 4.5 -12 71.60 2,500 27 274579 274642 274642 226100427 226100427 Buy
17X9
 5X5.5 4.5 -12 108.10 2,500 27 274580 274643 274643 226100428 226100428 Buy
17X9
 6X120 4.8 -5 67.01 2,500 27 274601 274644 274644 226100429 226100429 Buy
17X9
 6X135 4.5 -12 87.10 2,500 27 274602 274646 274646 226100431 226100431 Buy
17X9
 6X5.5 5.0 0 108.10 2,500 27 274603 274647 274647 226100432 226100432 Buy
17X9
 6X5.5 4.5 -12 108.10 2,500 27 274603 274648 274648 226100433 226100433 Buy
17X9
 8X170 5.0 0 125.20 3,500 28 274604 274650 274650 226100435 226100435 Buy
17X9
 8X6.5 5.0 0 125.20 3,500 28 274604 274649 274649 226100434 226100434 Buy

18 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
18X9
 5X150 5.0 0 110.11 2,500 29 274580 274653 274653 226100438 226100438 Buy
18X9
 5X5 4.5 -12 71.60 2,500 30 274579 274651 274651 226100436 226100436 Buy
18X9
 5X5.5 5.0 0 108.10 2,500 29 274580 274652 274652 226100437 226100437 Buy
18X9
 6X120 4.8 -5 67.01 2,500 29 274601 274654 274654 226100439 226100439 Buy
18X9
 6X135 5.0 0 87.10 2,500 29 274602 274655 274655 226100440 226100440 Buy
18X9
 6X5.5 5.0 0 108.10 2,500 29 274603 274656 274656 226100441 226100441 Buy
18X9
 8X170 5.0 0 125.20 3,750 30 274604 274658 274658 226100443 226100443 Buy
18X9
 8X180 5.0 0 125.20 3,750 30 274605 274659 274659 226100444 226100444 Buy
18X9
 8X6.5 5.0 0 125.20 3,750 30 274604 274657 274657 226100442 226100442 Buy

20 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
20X9
 5X150 5.0 0 110.11 2,500 35 274580 274662 274662 226100448 226100448 Buy
20X9
 5X5 5.0 0 71.60 2,500 35 274579 274660 274660 226100445 226100445 Buy
20X9
 5X5.5 5.0 0 108.10 2,500 35 274580 274661 274661 226100447 226100447 Buy
20X9
 6X135 5.0 0 87.10 2,500 35 274602 274663 274663 226100449 226100449 Buy
20X9
 6X5.5 5.0 0 108.10 2,500 35 274603 274664 274664 226100450 226100450 Buy
20X9
 8X170 5.0 0 125.20 3,750 37 274604 274666 274666 226100452 226100452 Buy
20X9
 8X180 5.0 0 125.20 3,750 37 274605 274667 274667 226100453 226100453 Buy
20X9
 8X6.5 5.0 0 125.20 3,750 37 274604 274665 274665 226100451 226100451 Buy

IMPORTANT WHEEL FITMENT NOTES
All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

Not suitable for use on 2022 to present Toyota Tundra models due to insufficient fastener thread engagement

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
