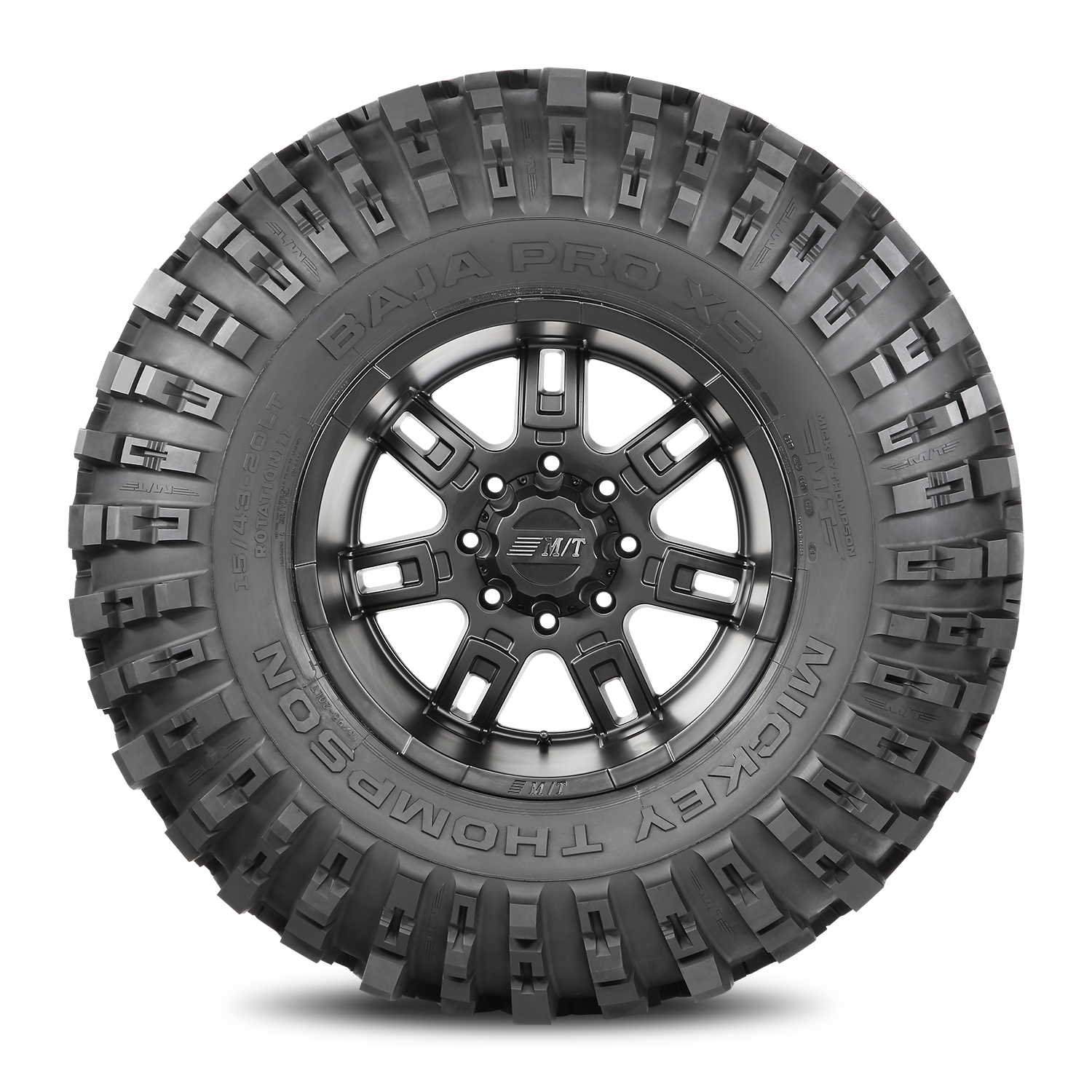

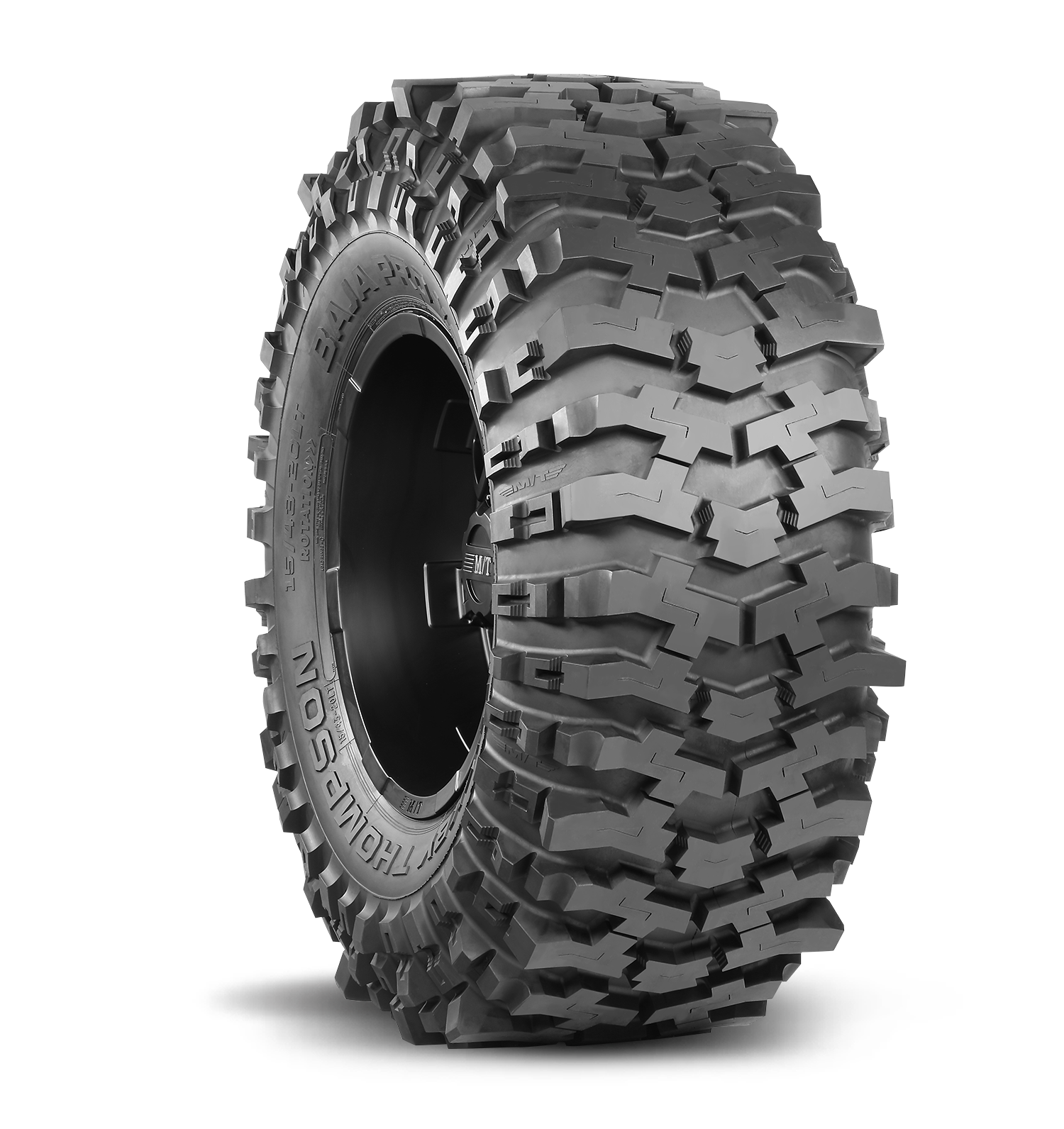

Baja Pro XS
Baja Pro XS
Baja Pro XS

Baja Pro XS

WORLD’S TALLEST D.O.T APPROVED LIGHT TRUCK TIRE

The Baja Pro XS is the necessary tire for your ON and OFF-ROAD rig.
With a tough 4-ply construction, this tire can handle any terrain.

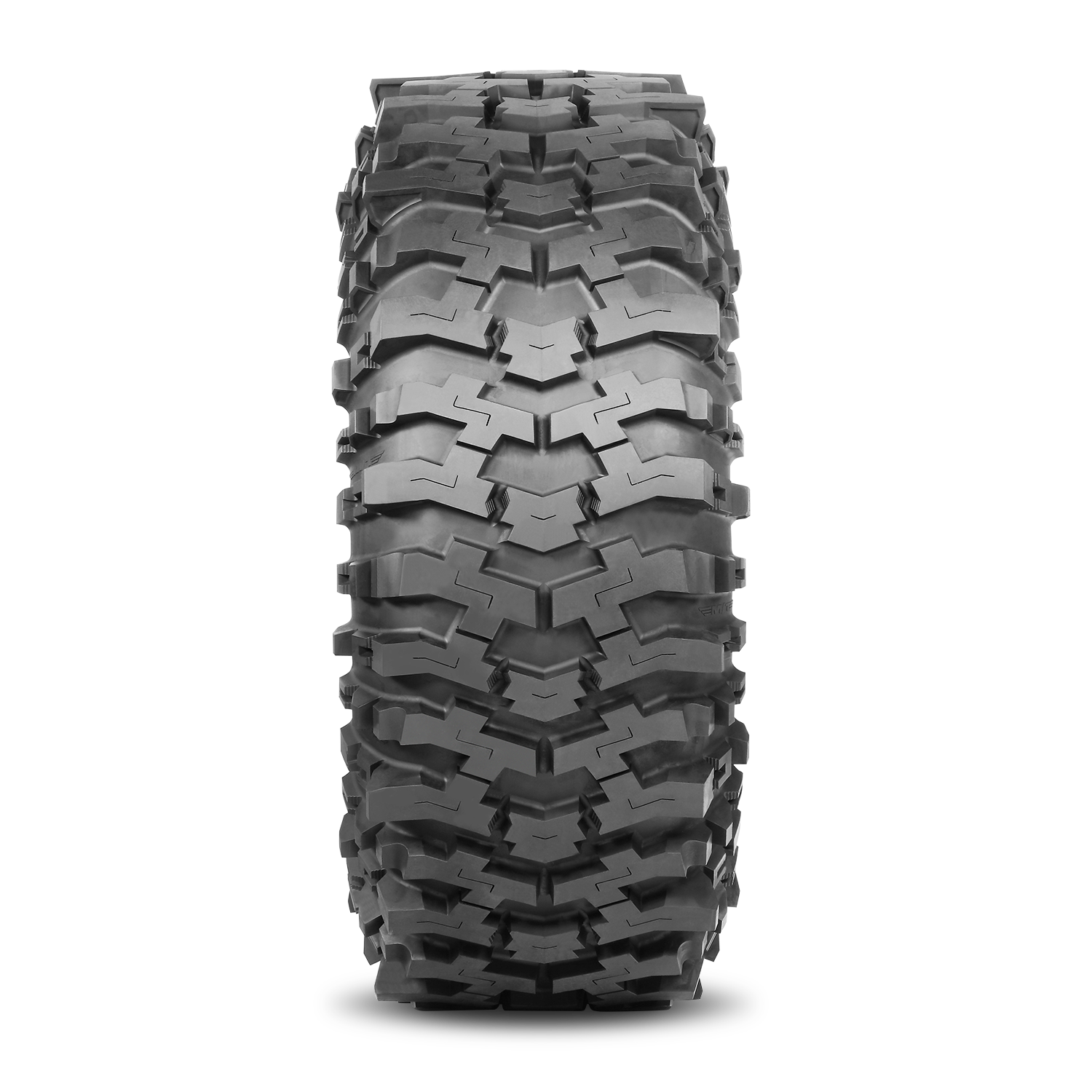

  • Directional Tread Pattern for balanced forward bite

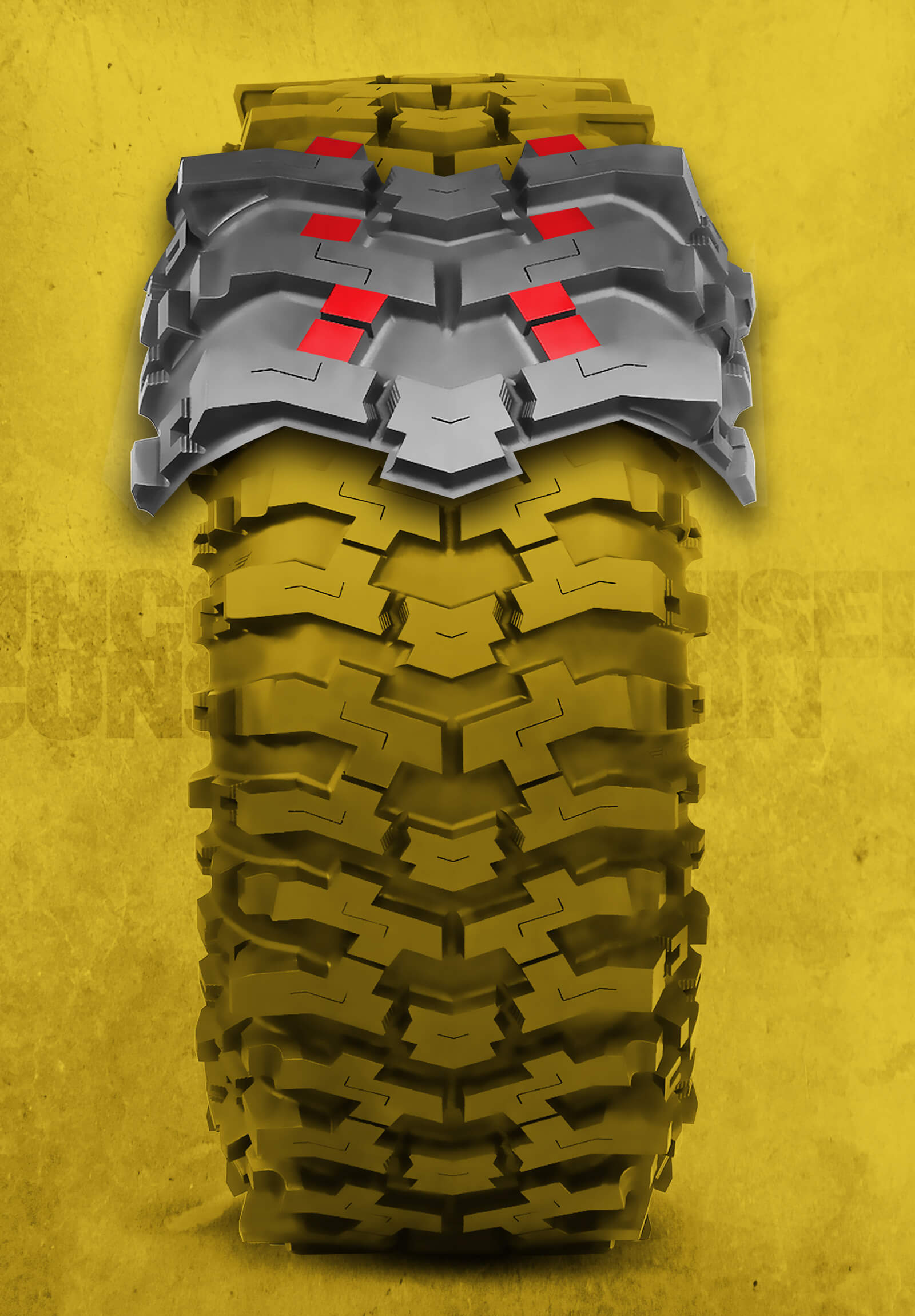

  • Circumferential Tread Elements for lateral grip

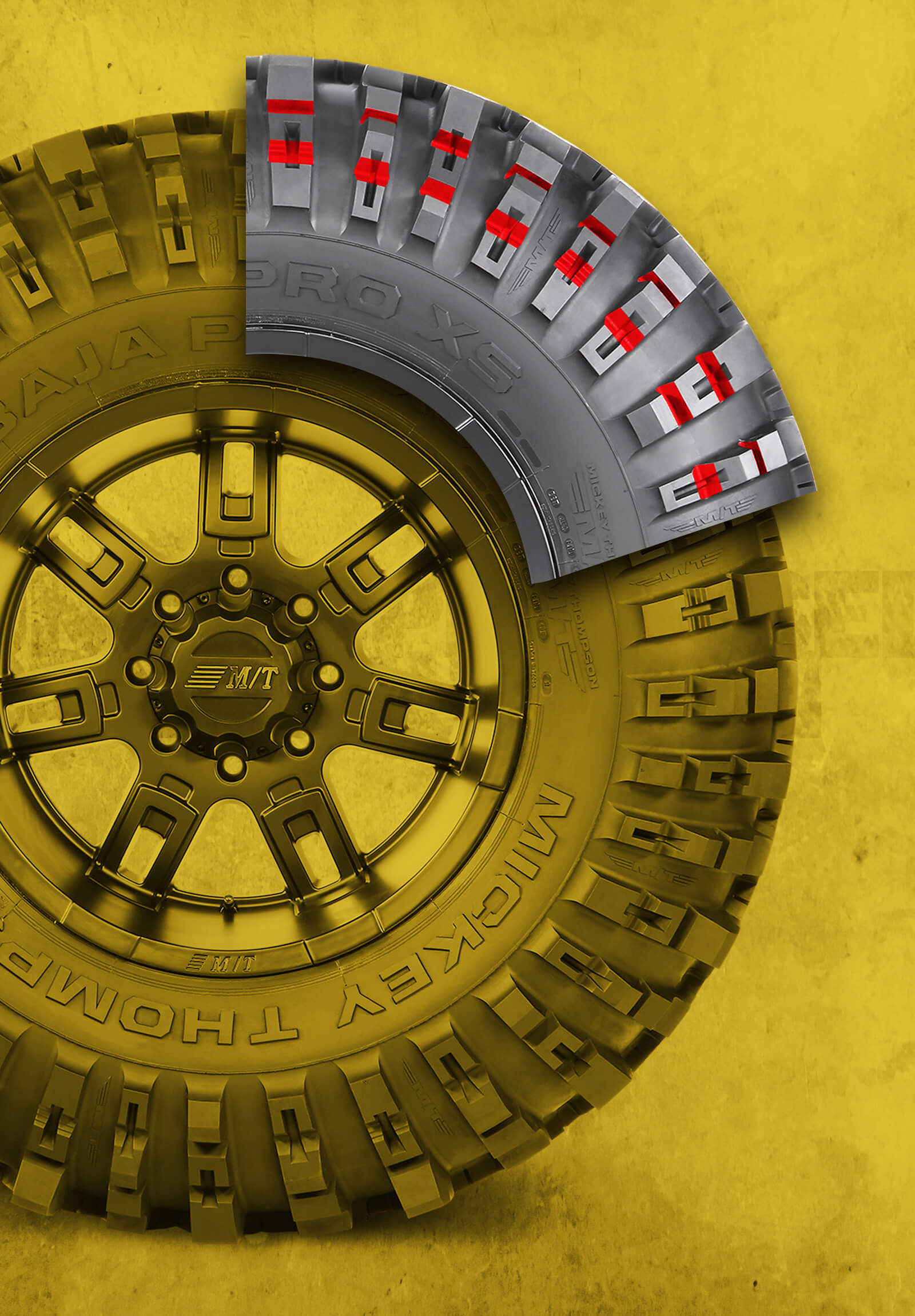

  • Siping for smooth surface traction and additional lug flex

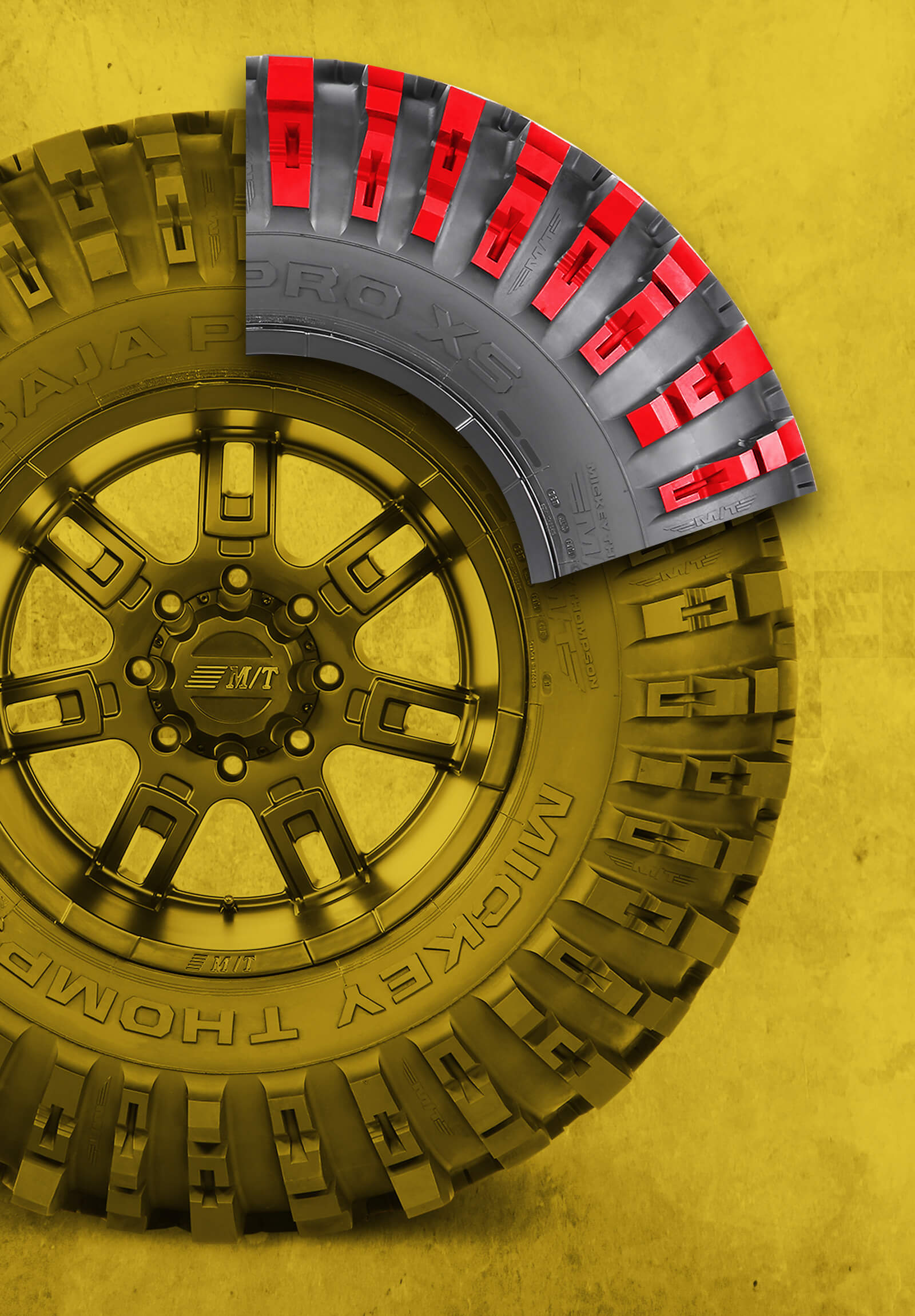

  • Angled Shoulder Scallops to guide mud and loose earth into SideBiter Cleats

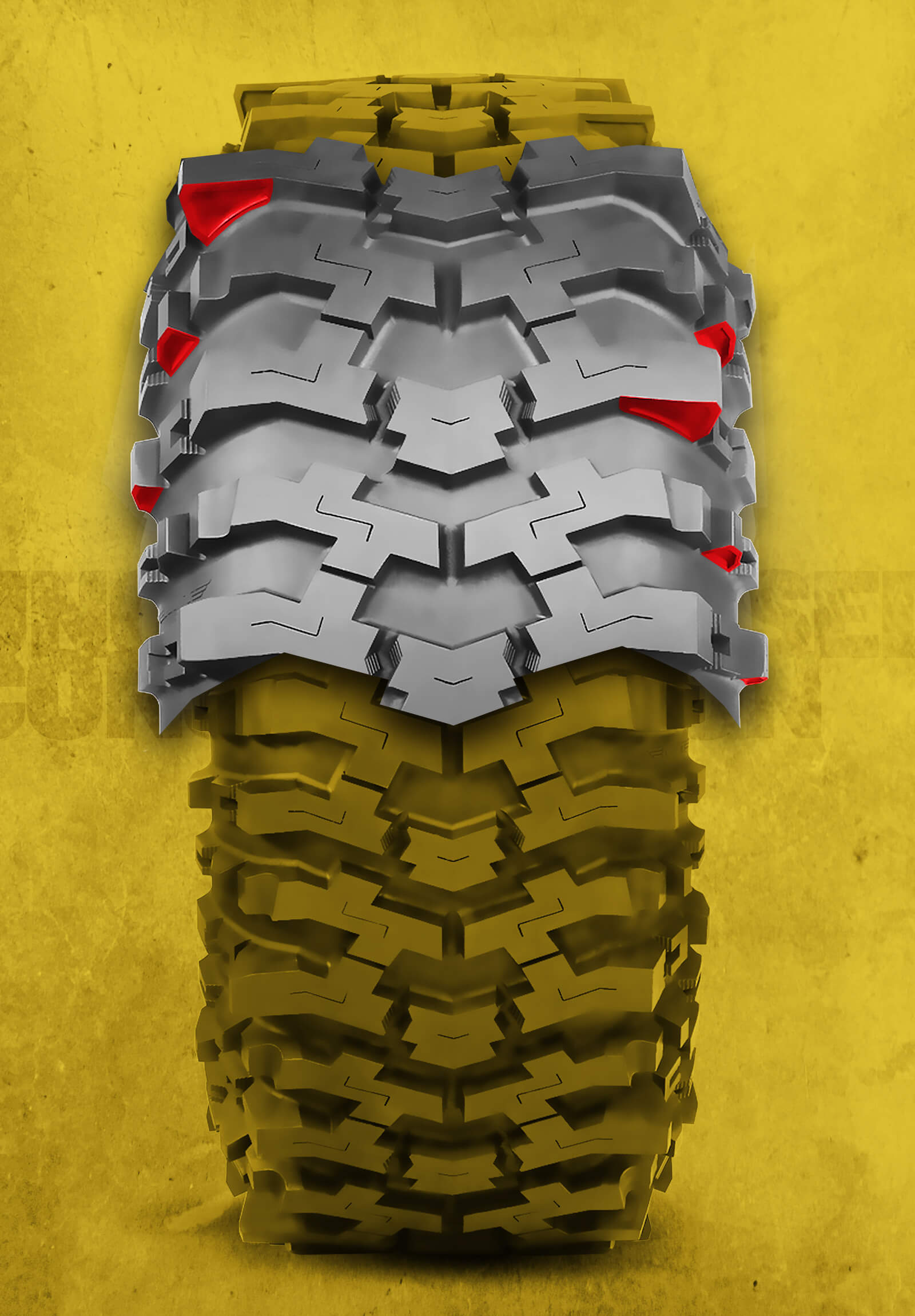

  • Mud Scoops provide a concave surface and create a void to keep mud from adhering
  • 27/32 of Tread Depth
  • Designed, Developed and Manufactured proudly in the USA

Sizes

16 INCH

TIRE SIZE /
EQUIV. SIZE
LOAD
RANGE
SIDEWALL SERVICE
DESC
MEAS RIM
APPROVED RIMS
MAX LOAD
MAX INFL
O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
19.5/46-16LT
C BLK 14.0
12.0-16.0
3,970 lbs @
40 psi.
46.4 21.1 16.5 27.0 148 90000036758 41669 Buy

17 INCH

TIRE SIZE /
EQUIV. SIZE
LOAD
RANGE
SIDEWALL SERVICE
DESC
MEAS RIM
APPROVED RIMS
MAX LOAD
MAX INFL
O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
15/43-17LT
C BLK 11.5
9.5-12.5
3,195 lbs @
40 psi.
42.3 18.3 13.9 27.0 124 90000036760 41735 Buy
35X13.50-17LT
C BLK 11.0
9.5-12.0
2,470 lbs @
30 psi.
34.6 14.0 11.5 27.0 74 90000037615 41753 Buy
38X13.50-17LT
D BLK 11.0
9.0-11.5
3,195 lbs @
55 psi.
37.9 15.3 11.8 27.0 90 90000037616 41783 Buy
40X13.50-17LT
C BLK 11.0
9.0-11.5
3,195 lbs @
40 psi.
39.6 15.5 11.7 27.0 99 90000037617 41703 Buy

20 INCH

TIRE SIZE /
EQUIV. SIZE
LOAD
RANGE
SIDEWALL SERVICE
DESC
MEAS RIM
APPROVED RIMS
MAX LOAD
MAX INFL
O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
19.5/54-20LT
C BLK 12.0
12.0-16.0
3,970 lbs @
40 psi.
53.7 21.6 16.9 27.0 194 90000036754 41049 Buy
17/49-20LT
C BLK 13.0
11.0-14.0
3,970 lbs @
40 psi.
47.5 19.9 14.1 27.0 161 90000036756 41097 Buy
19.5/46-20LT
C BLK 14.0
12.0-16.0
3,970 lbs @
40 psi.
46.3 19.9 16.1 27.0 149 90000036757 41069 Buy
15/43-20LT
C BLK 11.5
9.5-12.5
3,935 lbs @
40 psi.
42.6 18.0 14.2 27.0 130 90000036759 41035 Buy

24 INCH

TIRE SIZE /
EQUIV. SIZE
LOAD
RANGE
SIDEWALL SERVICE
DESC
MEAS RIM
APPROVED RIMS
MAX LOAD
MAX INFL
O.D. IN. SECT. WIDTH IN. TREAD WIDTH IN. TREAD DEPTH 32NDS APX. WT. LBS. MATL #. PART #
21/58-24LT
C BLK 16.5
13.5-17.5
3,970 lbs @
40 psi.
57.8 22.8 17.6 27.0 232 90000036753 41481 Buy

Note: All specifications are for single rear tire applications.
