Sidebiter® II

M/T CLASSIC SERIES

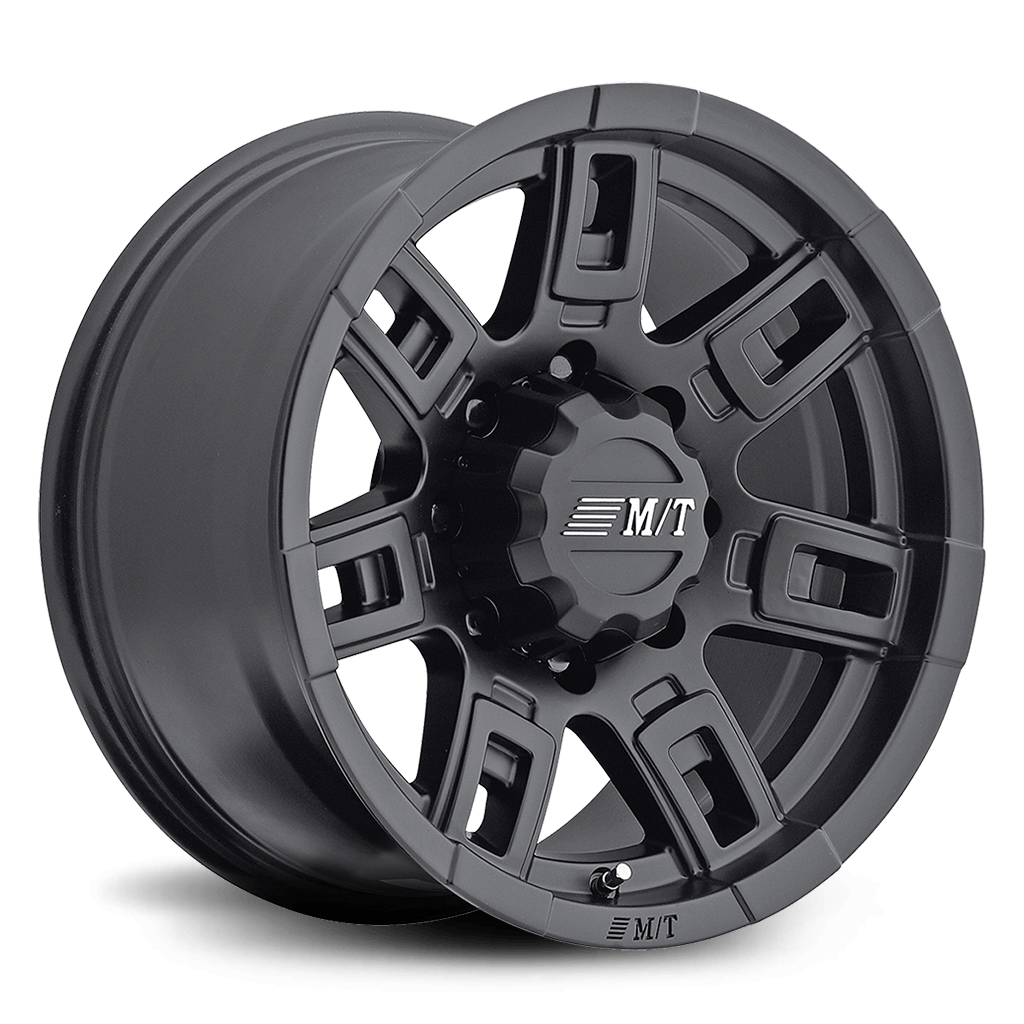

The Mickey Thompson Sidebiter II is styled after the revolutionary “tread-on-the-sidewall” Mickey Thompson Sidebiter tire design. The 7-spoke design is a heavy duty performer with a black satin finish. The Sidebiter II is available in a complete range of sizes from 15x8 through 22x12.

  • All new center cap provides easy access to locking hubs
  • High load rating for strength and durability
  • Non-corrosive black plastic screw on center cap
  • Lifetime limited warranty against structural defects
  • 1-year finish warranty


lifetime limited warranty
  • Sizes

Sizes

15 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
15X10
 5X4.5 3.6 -48 81.51 2,000 27 250398 250542 3050421 226100128 90000019383 Buy
15X8
 5X4.5 3.6 -22 81.51 2,000 23 250398 250539 3058421 226100125 90000019380 Buy

16 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
16X8
 6X5.5 4.5 0 106.10 2,600 25 250395 250545 3068412 226100131 90000019386 Buy
16X8
 8X6.5 4.5 0 125.20 3,640 25 250396 250546 3068482 226100132 90000019387 Buy

17 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
17X9
 5X5 4.5 -12 78.11 2,600 29 250398 250548 3079431 226100134 90000019389 Buy
17X9
 6X5.5 5.0 0 106.10 2,600 29 250395 250551 3079412 226100137 90000019402 Buy

20 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
20X12
 8X180 5.2 -32 124.31 3,640 43 250396 250575 3022180 226100151 90000030411 Buy

22 INCH

SIZE BOLT CIR. BACK SPACE IN. OFFSET MM HUB BORE MM. MAX. LOAD LB. APP. WT. LB. REPL. CAP* MATL #. PART # PRODUCT CODE CROSS REF#
22X10
 8X170 5.0 -12 125.22 3,640 45 250396 250577 3220170 226100153 90000030413 Buy
22X10
 8X6.50 5.0 -12 125.22 3,640 45 250396 250576 3220482 226100152 90000030412 Buy
22X12
 6X135/6X5.5 4.8 -44 106.10 2,600 48 250399 250558 3222163 226100144 90000030364 Buy
22X12
 8X170 4.8 -44 125.22 3.64 51 250396 250560 3222170 226100146 90000030366 Buy
22X12
 8X180 5.2 -32 124.31 3.64 50 250396 250571 3222180 226100147 90000030367 Buy
22X12
 8X6.5 4.8 -44 125.22 3.64 51 250396 250559 3222482 226100145 90000030365 Buy

IMPORTANT WHEEL FITMENT NOTES
All Mickey Thompson Classic Series, SideBiter®, and M/T Metal Series wheels require (60-Degree) Bulge Acorn (Cone Bulge) Seat Lug Nuts. Mickey Thompson recommends Duplex Bulge Acorn Lug Nuts on vehicles of GVWR of 6,500 lbs. or greater.

All Deegan 38 Series wheels use 60 Degree Conical Bulge Seat lugs but will also accept E/T Style lug nuts which provide a lug-centric installation.

Not suitable for use on 2022 to present Toyota Tundra models due to insufficient fastener thread engagement

For All 6x5.5 Bolt Circle Wheels: Hub Centering Ring included for late Model Chevrolet/GMC applications.

Center caps are not available for certain applications including 1997 & earlier Ford 3/4 & 1-ton pickups, 2002 & earlier Dodge/Ram 3/4 & 1-ton pickups, 1986 & earlier Jeep, CJ models & earlier Toyota Land Cruiser models.

Open caps are available for 5, 6 and 8 lug Classic Series wheels, separately.

NOTE: All dual drill wheels in the MT METAL line are cover-style caps—no exposed lugs.
